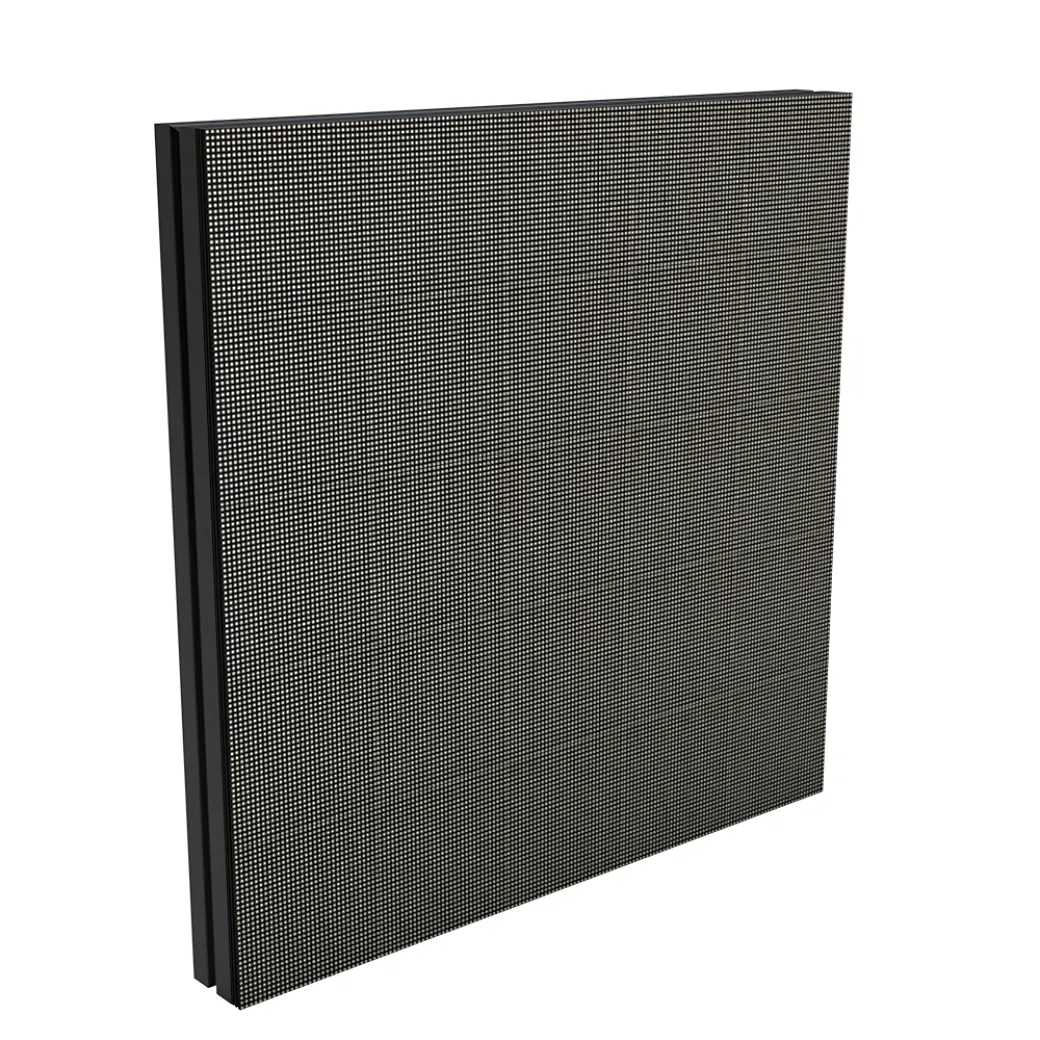

OUTDOOR FULL COLOR LED MODULE
OUTDOOR FULL COLOR LED MODULE
Using customized outdoor SMD lamp beads, the color is consistent, high refresh, and clear graphic. IP65 waterproof grade, with excellent waterproof and dustproof effect in outdoor environment. The use of black environmentally friendly materials makes the picturehave a higher contrast.

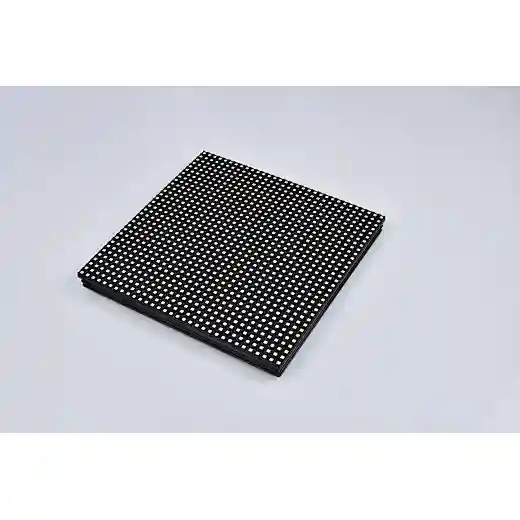

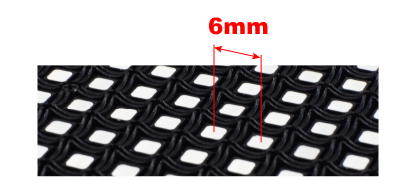

The center distance of each lamp bead is 6mm, and each module has 1024 RGB lamp beads (32x32). Each lamp bead has an independently protruding plastic protective shell.

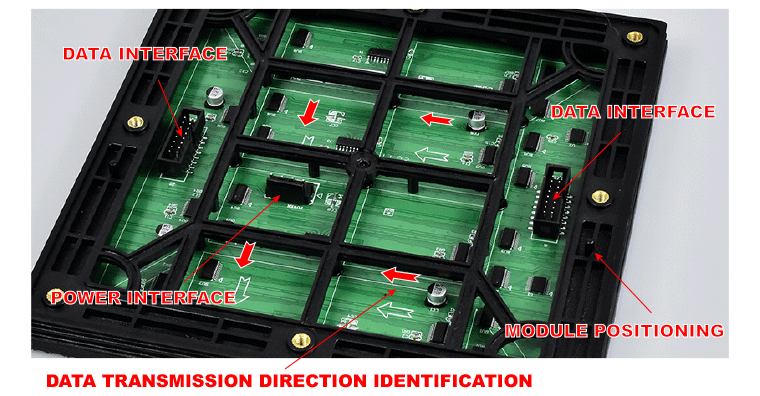

Circuit board waterproof treatment. Mark the data transmission direction for easy installation.

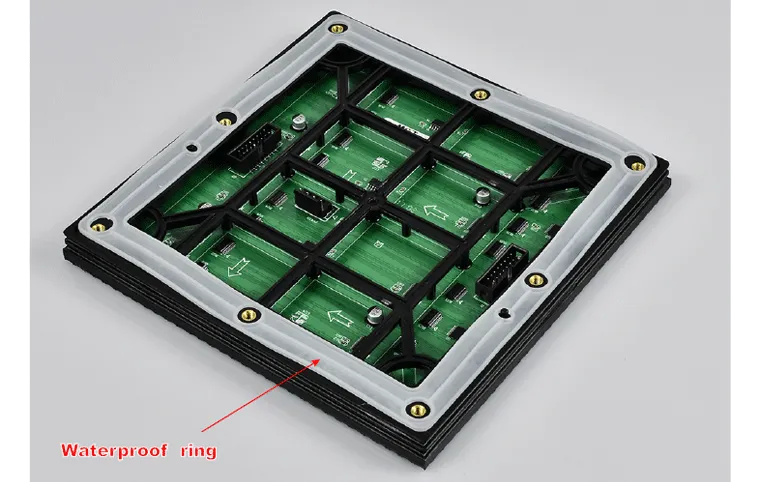

Waterproof rubber ring design, the waterproof effect is guaranteed.

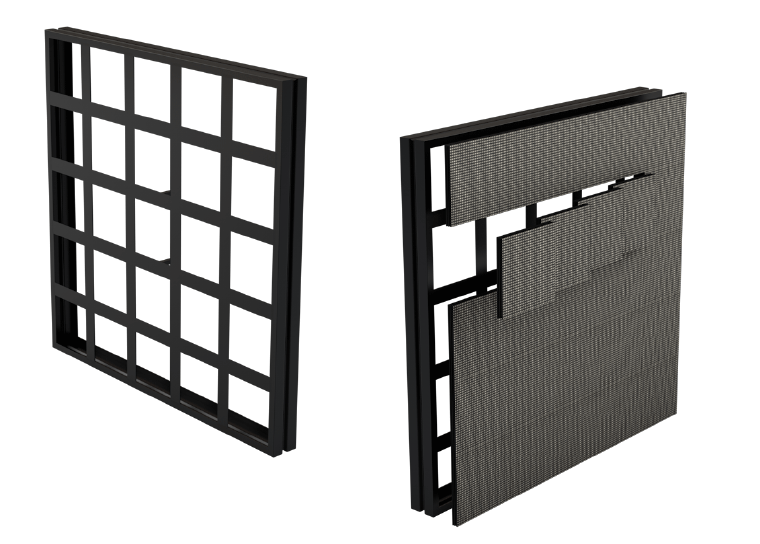

Conventional framework
Frame size: 960 x 960 x 80 mm
Installable modules: 25 pcs(5x5)
Material: iron
Surface treatment: Powder electrostatic spraying
| Product | Outdoor full color LED module MLD |

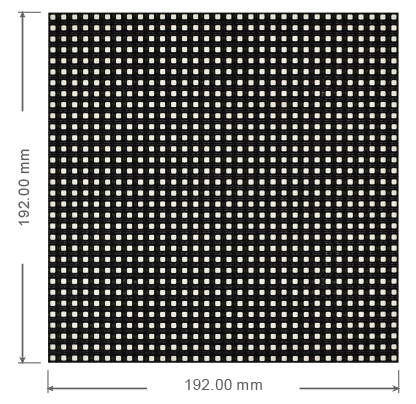

| Size | 192x192x17mm |
| Material | Plastic |
| LED density | 27777 dot/m2 |
| Lamp Distance | 6mm |
| LED Color | Pure Red + Pure Green + Pure Blue |
| Best viewing distance | 6-150m |
| DC | 5V /60A |
| Display Content | MPG／MPEG／MPV／MPA／AVI／JPG／GIF/…… |
| Software | LED Studio |
| Frame material | iron |
| Frame size | 960x960x80mm |

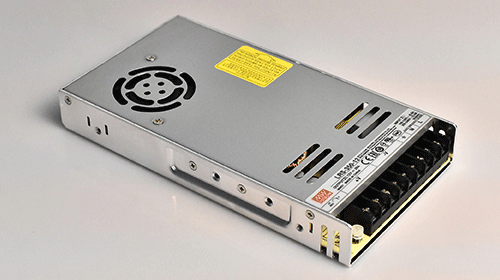

Power

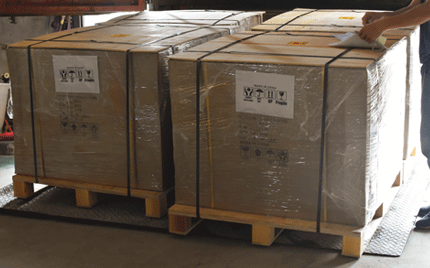

Packing

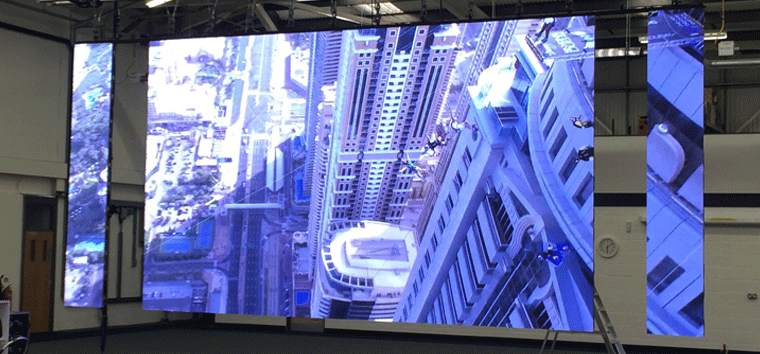

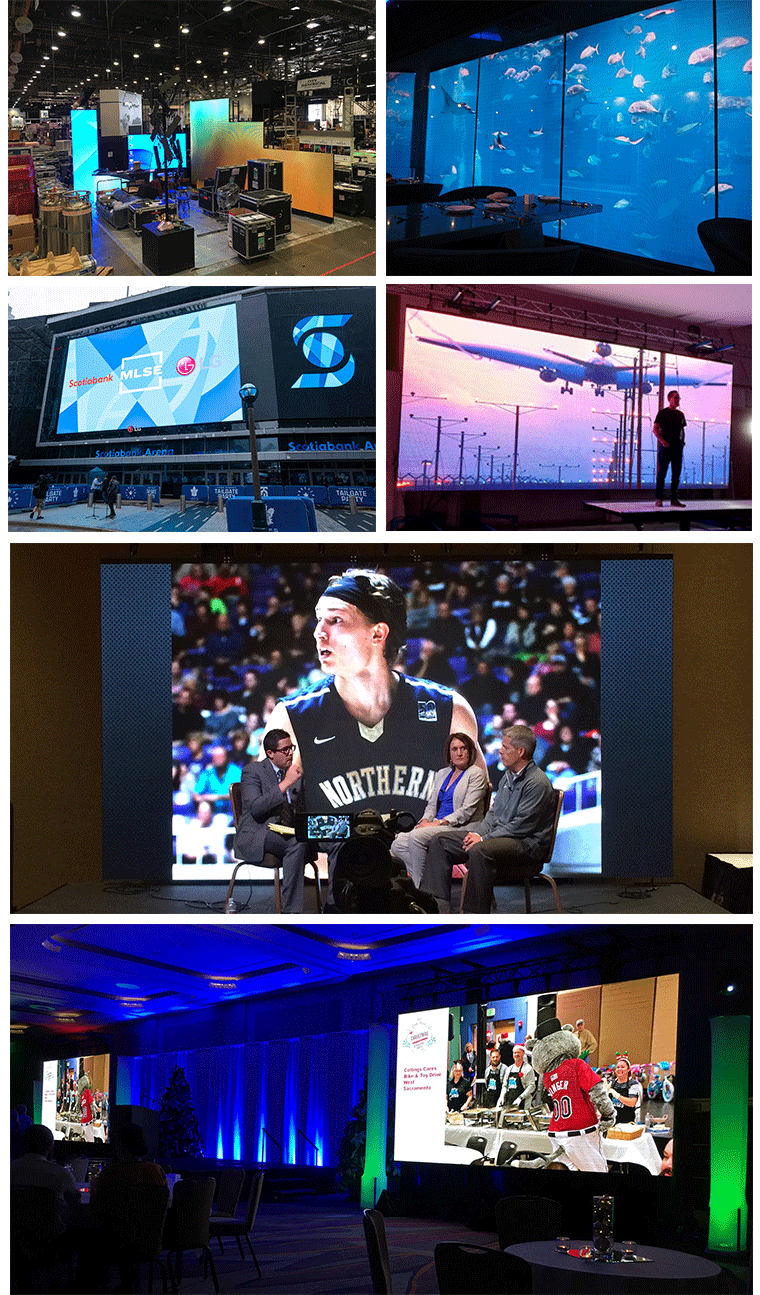

Applications
