Outdoor slim light box
WSL-50
The design of the flip cover has silicone strips on the sides to prevent water from entering. Using LED back light source, environmental protection and light more uniform. Use wall-mounted fixing. Often used for outdoor advertising displays.

Single sided

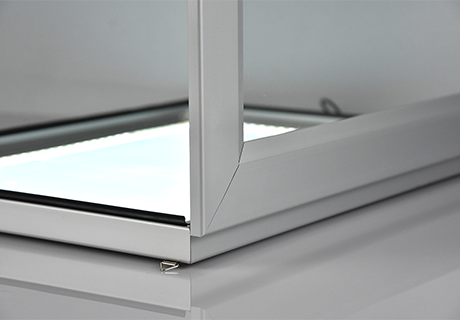

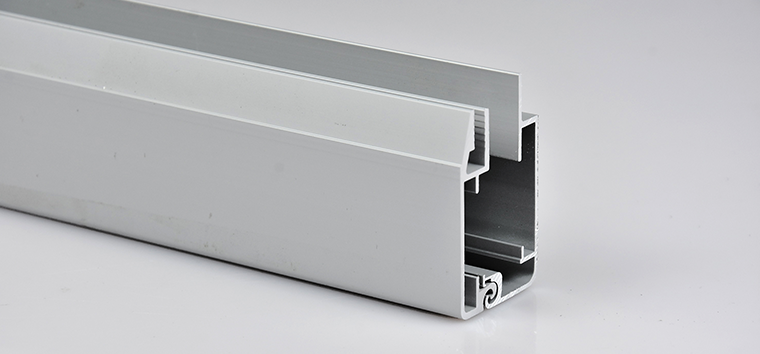

50 mm magnetic frame & 32 mm thickness

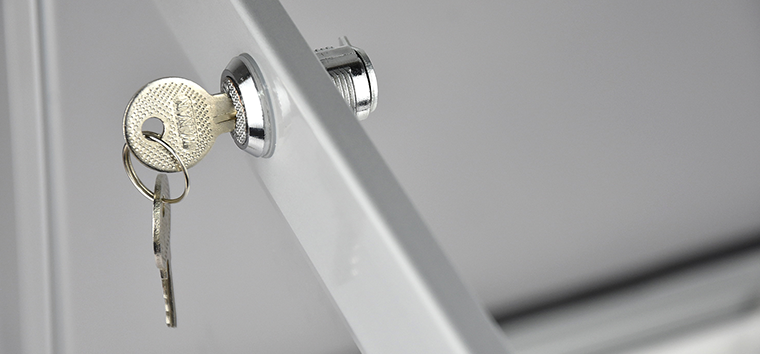

Design with lock for fixing the cover
Silicone strip for waterproofing

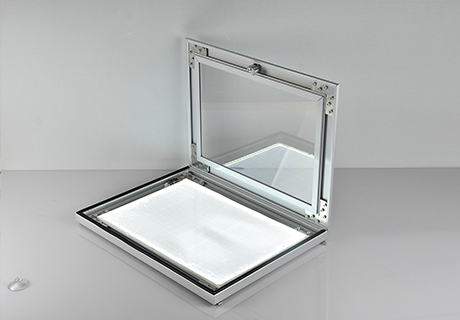

Side opening cover design
SIZE | OUTER SIZE | GRAPHIC SIZE | VISUAL SIZE | ADAPTOR |
A0 | 921X1279 | 841X1189 | 821X1169 | 12V-3.0A |
A1 | 664X921 | 594X841 | 574X821 | 12V-2.0A |
A2 | 500X664 | 420X594 | 400X574 | 12V-1.5A |
A3 | 367X500 | 297X420 | 277X400 | 12V-1.0A |
400X600 | 400X600 | 320X520 | 300X500 | 12V-1.5A |
600X800 | 600X800 | 520X720 | 500X700 | 12V-2.0A |

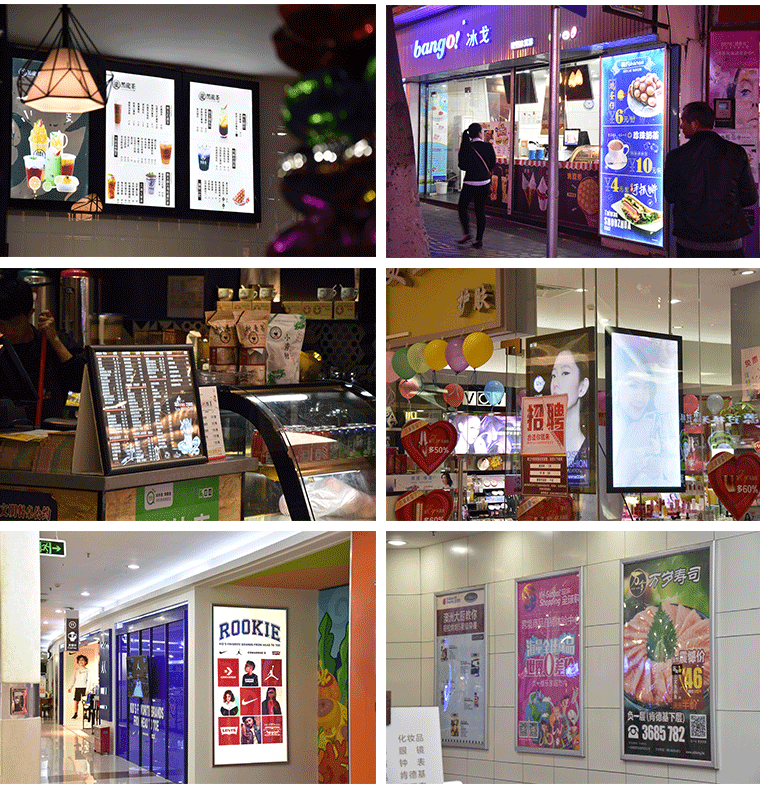

Applications
